Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking

  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
  • Plank Board Timber Multi Blade Rip Saw Machine price Round Log Wood Log Gang Multi Rip Saw Machine Woodworking
Tempat asal PROVINSI SHANDONG, CINA
Nama merek SH
Sertifikasi ISO9001
Nomor model SH80-300, SH120-300, SH250-400, SH290-400, SH150-400, dll
Kuantitas min Order 1 set
Harga US $500 - 5,400 / Set
Kemasan rincian Pengemasan Rangka Besi
Waktu pengiriman dalam waktu 15 hari
Syarat-syarat pembayaran T/T atau L/C pada pandangan, Western Union
Menyediakan kemampuan 200 set/set per bulan

Contact me for free samples and coupons.

Ada apa:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Detail produk
Nama produk Mesin gergaji papan multi mata pisau Aplikasi Gergaji papan kayu menjadi potongan-potongan kecil
Max. Maks. sawing width lebar gergaji 400mm Max. Maks. sawing height ketinggian gergaji 160mm
Kuantitas Pisau 2-10 buah makanan Frekuensi makan otomatis dan kecepatan disesuaikan
Diameter bilah 355mm Motor utama 37KW x 2set
Tegangan 380v ATAU sebagai kebutuhan pelanggan Jaminan Kualitas 1 Tahun
Cahaya Tinggi

Mesin Gergaji Multi Arbor Ganda

,

Penggergajian Gergaji Rip 37KW

,

Mesin Gergaji Multi Rip 37KW
Tinggalkan pesan
Deskripsi Produk

SH160-400 Multi-Blade Panel Saw, Multi rip saw untuk panel, Double Arbor Multi-Blade Rip Saw

Panel Spindle Ganda Pemotongan Berbagai Bilah Rip Saw

  • Pengantar:

1.Dengan Inverter auto feeding

2. Dengan pisau karbida untuk memotong kayu keras

3Dengan pusat spindle menyemprotkan air untuk mendinginkan pisau

4. Dengan kontrol panel otomatis

5. lebar gergaji / ketebalan dapat dilakukan sebagai kebutuhan pelanggan

6. Dapat mengubah mesin besar seperti kebutuhan pelanggan



  • Spesifikasi:

Multi Blade Rip Saw- Untuk memotong panel kayu/papan kayu

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Lebar gergaji
250-300 mm
250-300 mm
250-300 mm
250-300 mm
250-300 mm
Maks. ketebalan gergaji
60 mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Diameter pisau gergaji
150 mm
180 mm
210mm
230 mm
255mm
Diameter Spindle
50 mm
50 mm
50 mm
50 mm
50 mm
Berat badan
1190kg
1260kg
1420kg
1560kg
1620kg

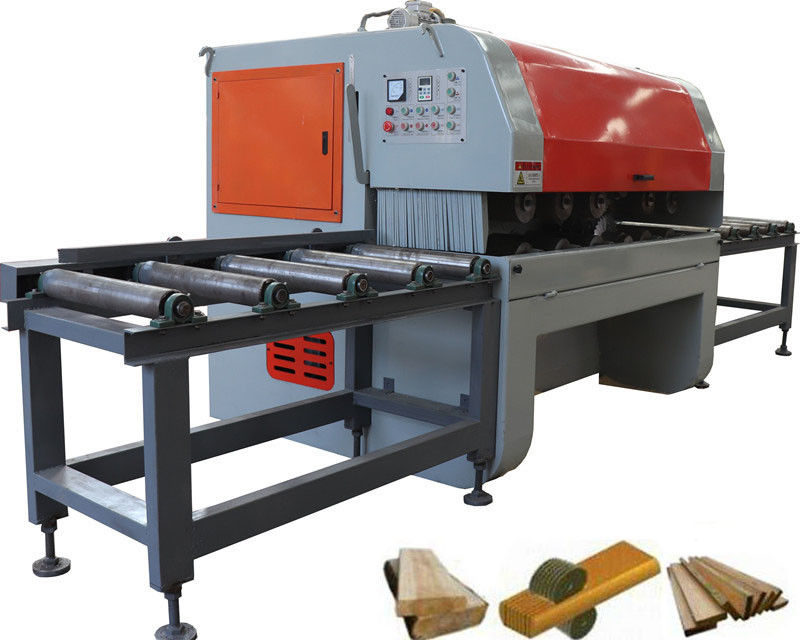

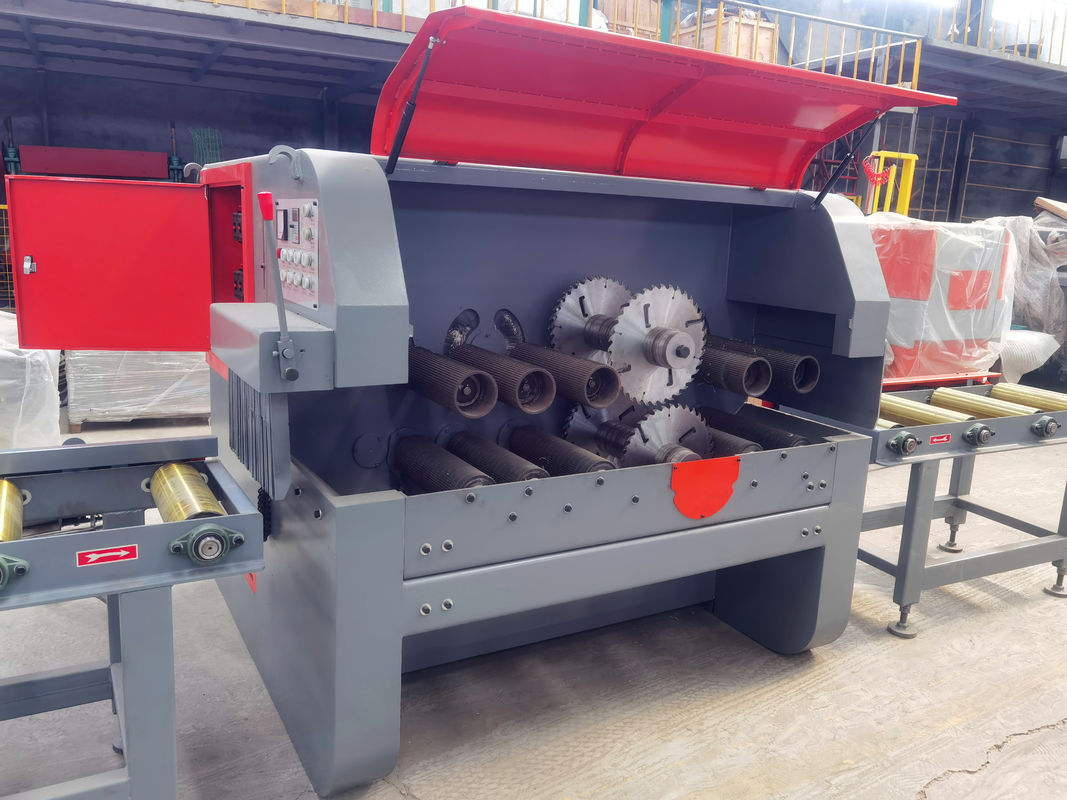

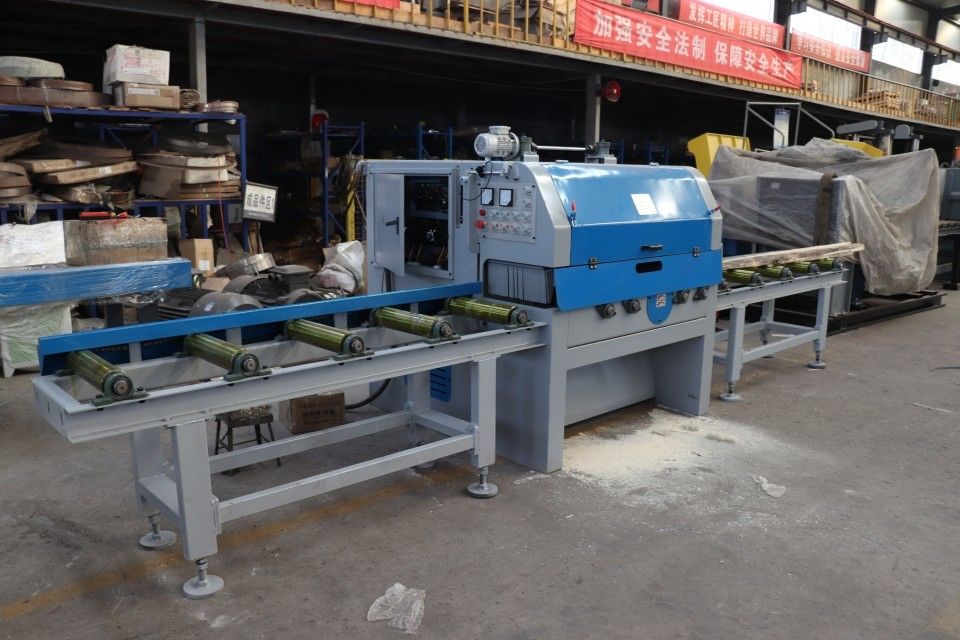

Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 0Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 1Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 2



Double Spindle Panel Cutting Multiple Blades Rip Saw -Typ Tugas Berat

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Lebar gergaji
350-400 mm
350-400 mm
350-400 mm
350-400 mm
350-400 mm
350-400 mm
350-400 mm
Ketebalan gergaji
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Diameter pisau gergaji
180 mm
230 mm
255mm
230 mm
280mm
280mm
380mm
Diameter Spindle
70 mm
70 mm
70 mm
80 mm
80 mm
80 mm
100 mm
Berat badan
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg

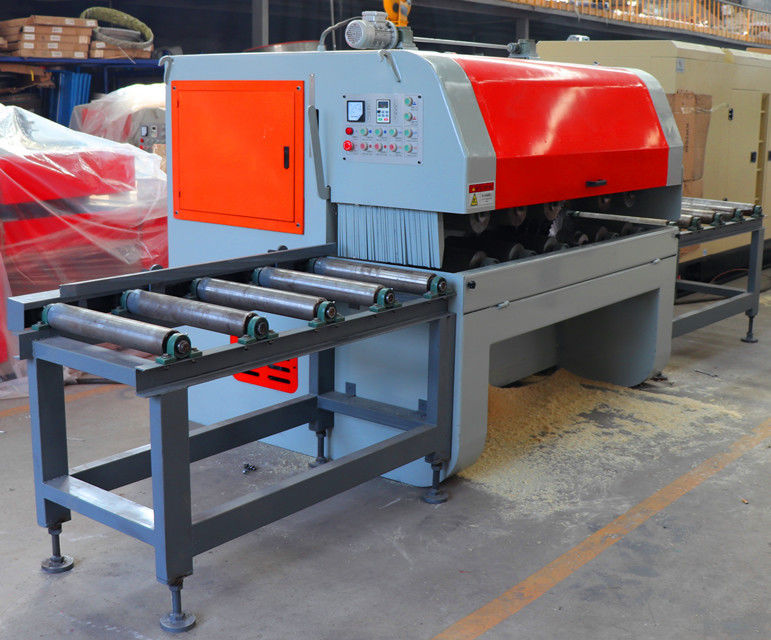

Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 3

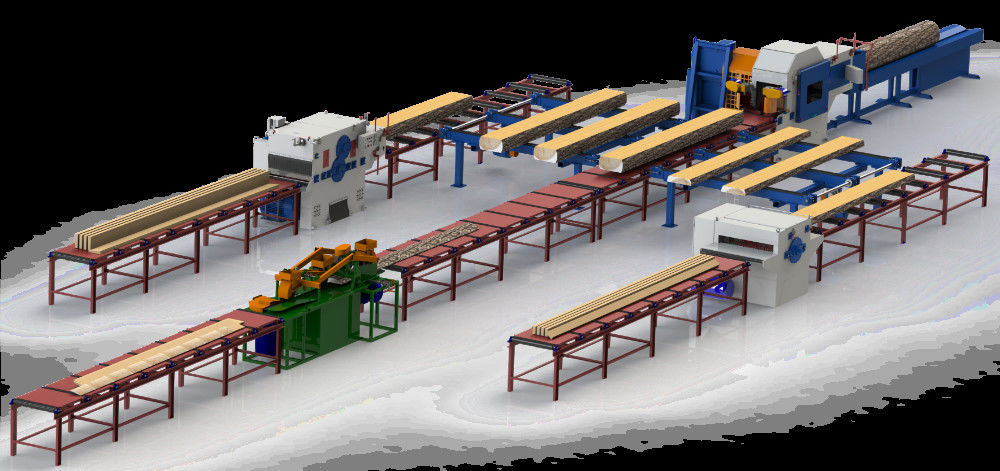

Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 4

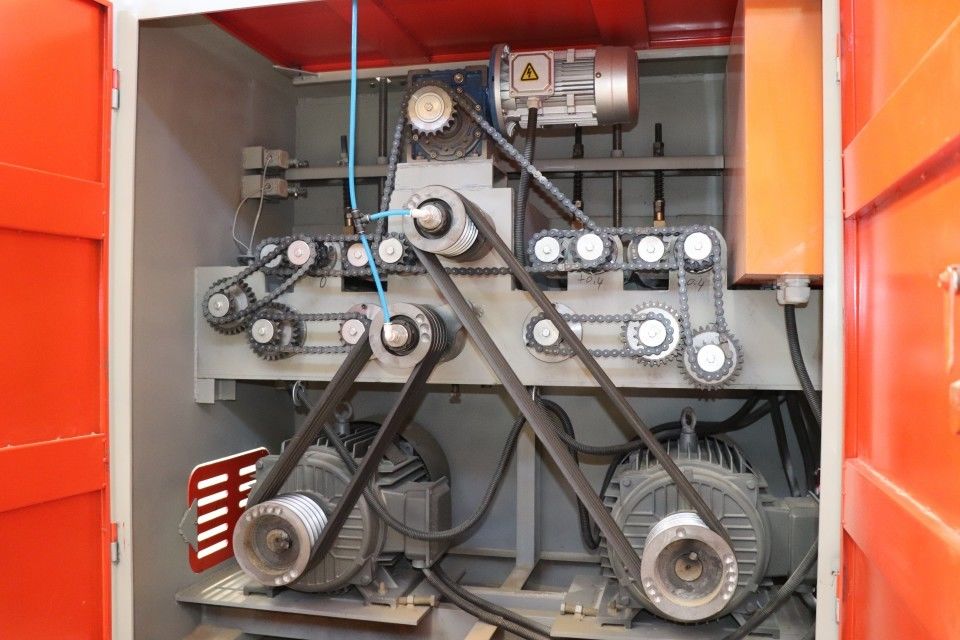

Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 5

Pisau pemotong multi-bilah

Pengantar:

  • dengan posisi inframerah
  • untuk memotong tepi papan
  • menggergaji papan menjadi pcs kecil
  • mudah digunakan, tidak ada instalasi

Data teknis:

Model HW500 HW800
Ketebalan gergaji 15-50 mm 15-50 mm
Lebar gergaji 500 mm 800 mm
Diameter bilah bulat 230 mm 230 mm
Motor listrik 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Kecepatan rotasi 3500/menit 3500/menit































Foto:

Papan Papan Kayu Multi Blade Rip Saw Mesin Harga Round Log Kayu Log Gang Multi Rip Saw Mesin Woodworking 6
