Mesin Debarker Cincin Kayu Mesin Debarker Pohon Kayu Dijual, Mesin Debarking Kayu
Debarker Log Gulungan Tunggal
Perkenalan:
Spesifikasi:
| Model | SHBP6000 | SHBP9000 |
| Kapasitas Ton/Jam | 5-10 | 10-15 |
| Tenaga motor | 37KW | 45KW |
| Diameter Log | 15-320mm | 15-320mm |
| Tingkat Debarking | 98% | 98% |
| Panjang Log Maks | 6000mm | 9000mm |
| Berat | 4 | 5 |
Debarker Log Gulungan Ganda
| Model | SHBPD4500 | SHBPD6000 | SHBPD9000 |
| Kapasitas TON/JAM | 3-6 | 5-10 | 10-15 |
| Tenaga motor | 7.5kw*2 | 11*2 | 15*2 |
| Diameter Log | 50-250mm | 50-250mm | 50-250mm |
| Tingkat Debarking | 98% | 98% | 98% |
| Panjang Log Maks | 4500mm | 6000mm | 9000mm |
| Ukuran keseluruhan | 5,8*1,6*2 | 7,5*1,6*2 | 11*1,6*2 |
| Berat | 4 | 4 | 5 |
Debarker Log Jenis Dering
| Model | SHHB220 | SHHB260 | SHHB320 |
| Diameter Disk Blade | 560MM | 560MM | 560MM |
| Kuantitas Pisau | 4 | 4 | 4 |
| Diameter Log | 60-220MM | 100-260MM | 150-320MM |
| Kecepatan Makan M/MIN | 8.3 | 8.3 | 8.3 |
| Tingkat Debarking | 98% | 98% | 98% |
| Tenaga motor | 6.2KW | 6.2KW | 6.2KW |
Produk-produk terkait
Mesin Cukur Kayu
Spesifikasi teknis:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Memproses kayu maks.panjang (mm) | 800 | 1400 | 1400 |
| Memproses maks.lebar/diameter(mm) | 500 | 500 | 500 |
| Kuantitas poros | 2 | 4 | 6 |
| Pisau (pcs) | 8 | 16 | 24 |
| Kecepatan motor (rpm) | 3500 | 3500 | 3500 |
| Panjang bin (mm) | 800 | 1400 | 1400 |
| Daya Motor Total (kw) | 10.5KW | 23,25KW | 30,75KW |
| Kedalaman pencukuran (mm) | 0,2-1 | 0,2-1 | 0,2-1 |
| Keluaran serutan | 500KG/JAM | 1000KG/JAM | 1500KG/JAM |
| Berat mesin | 950kg | 1800kg | 2200kg |
|
1, Dengan satu set pisau termasuk; 2,dengan pneumatic capping disertakan, yang dapat meningkatkan kapasitas kerja; |
|||

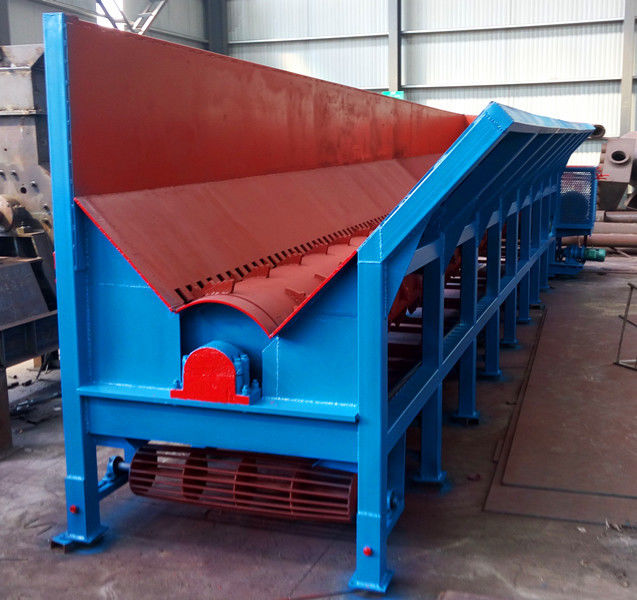

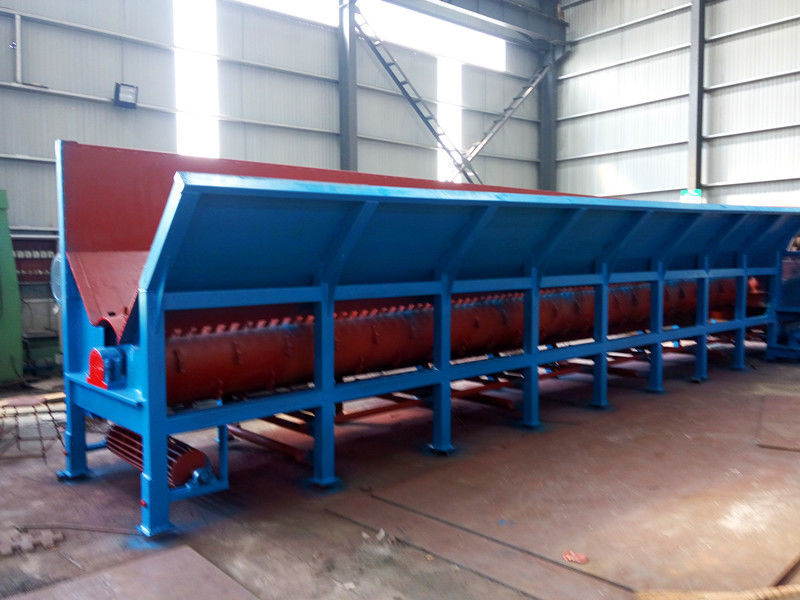

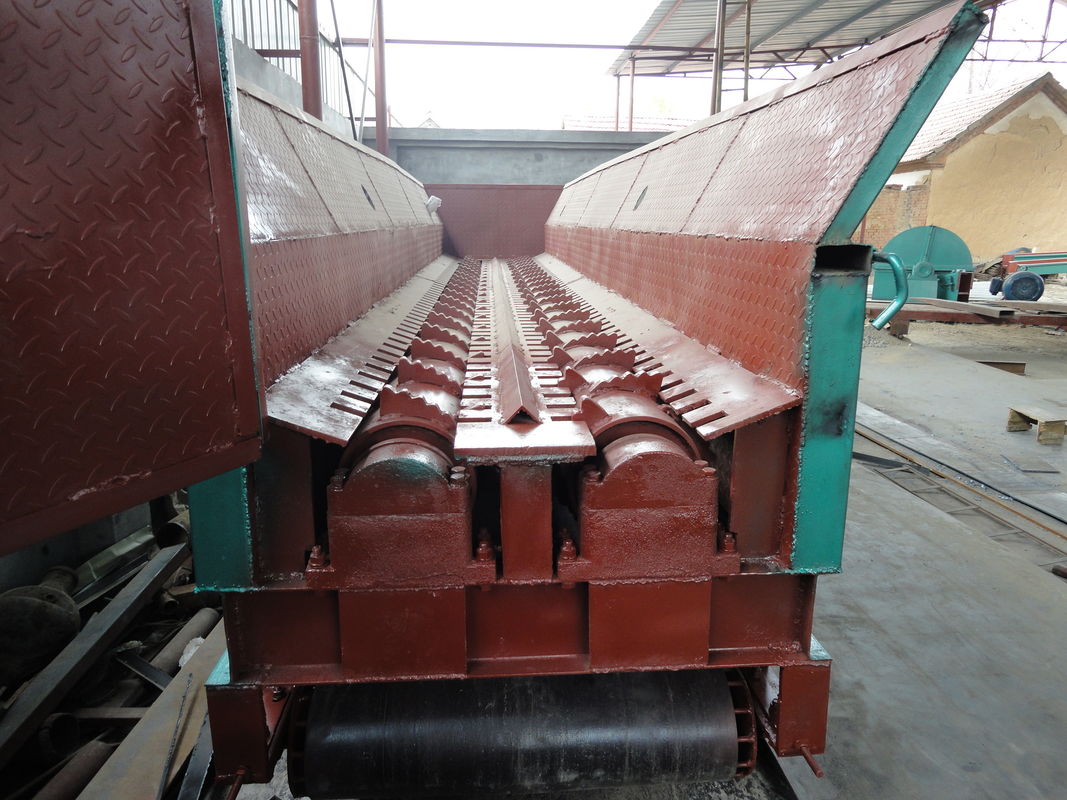

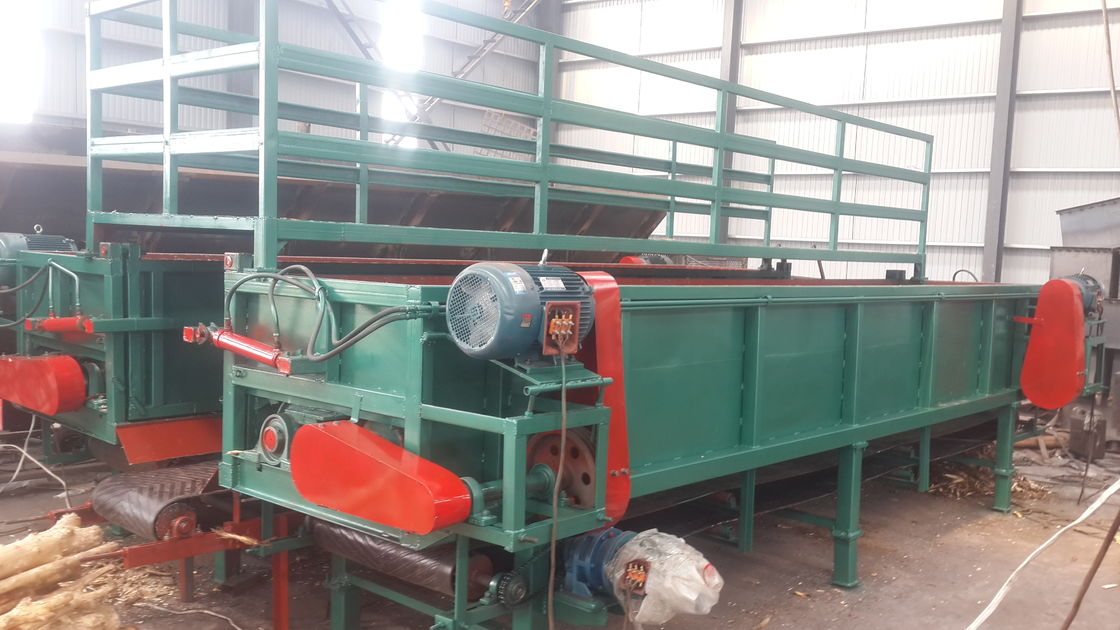

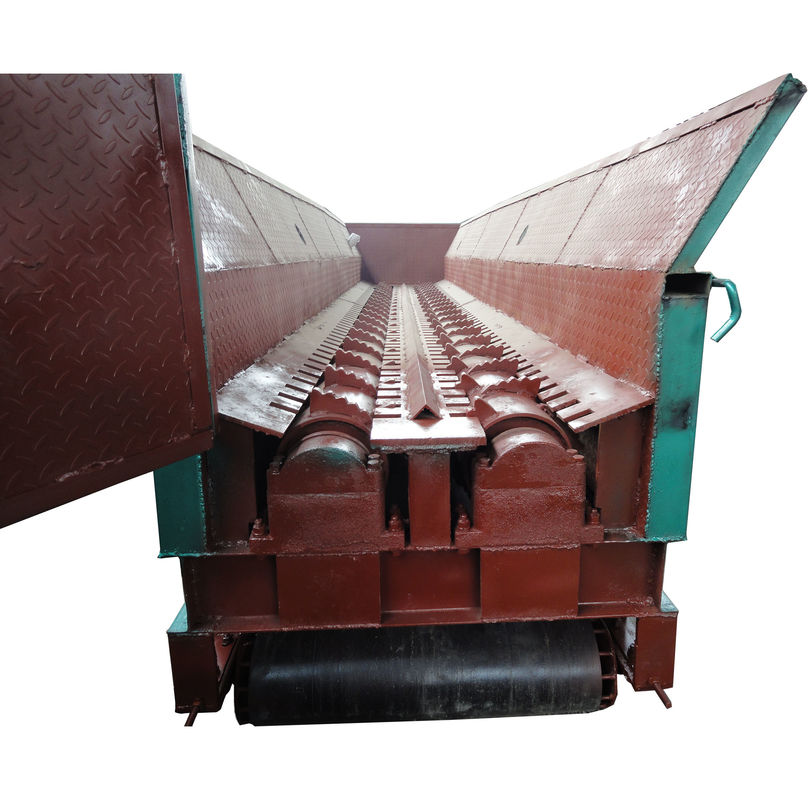

Gambar Rinci:
