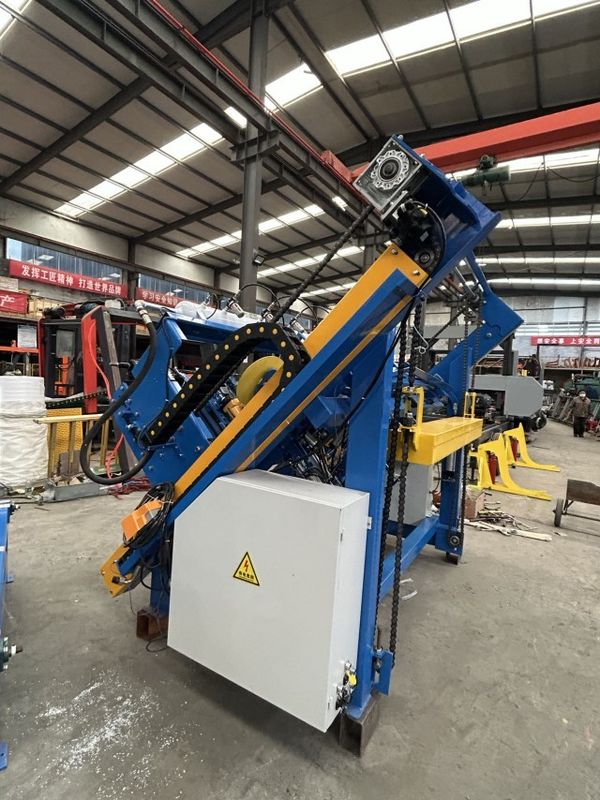

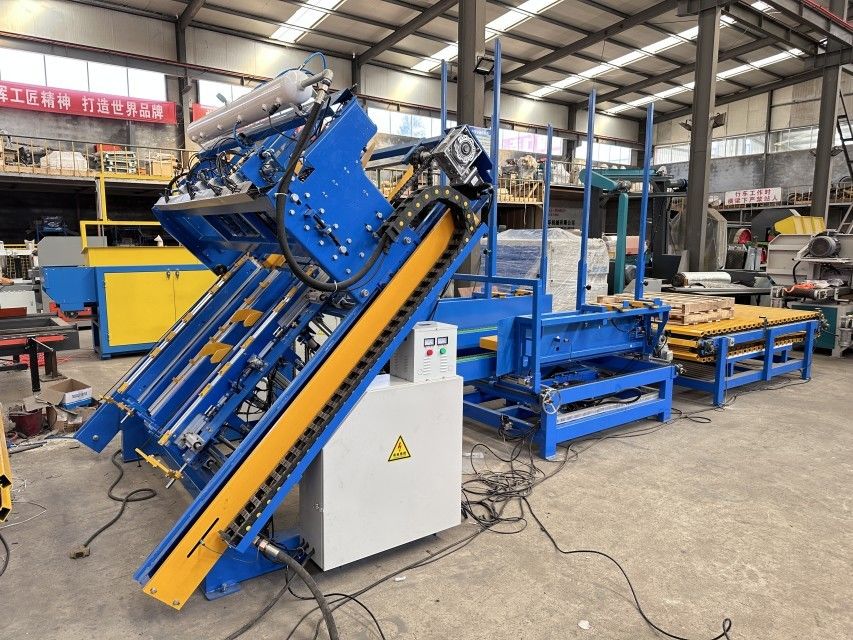

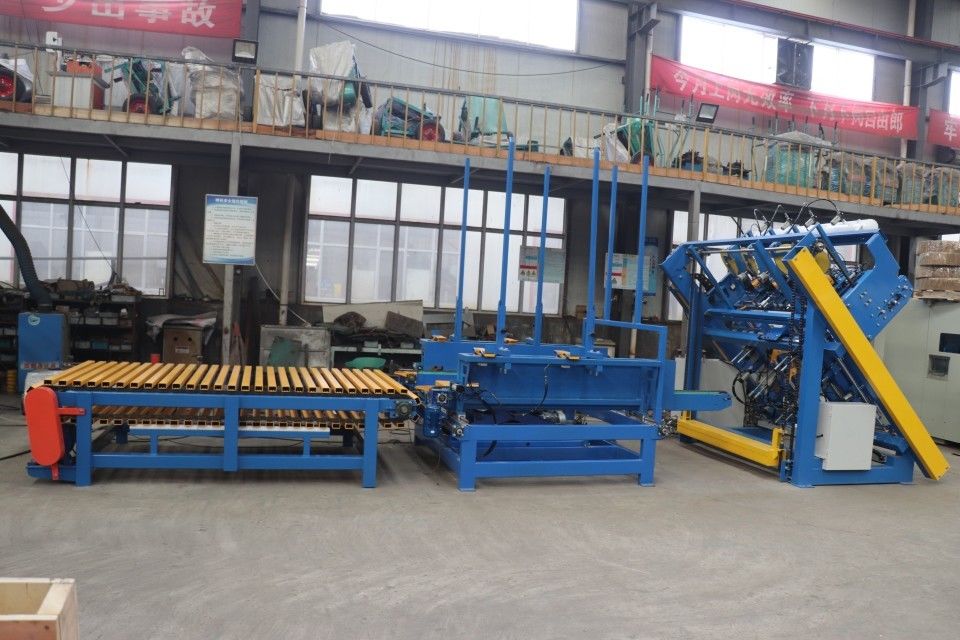

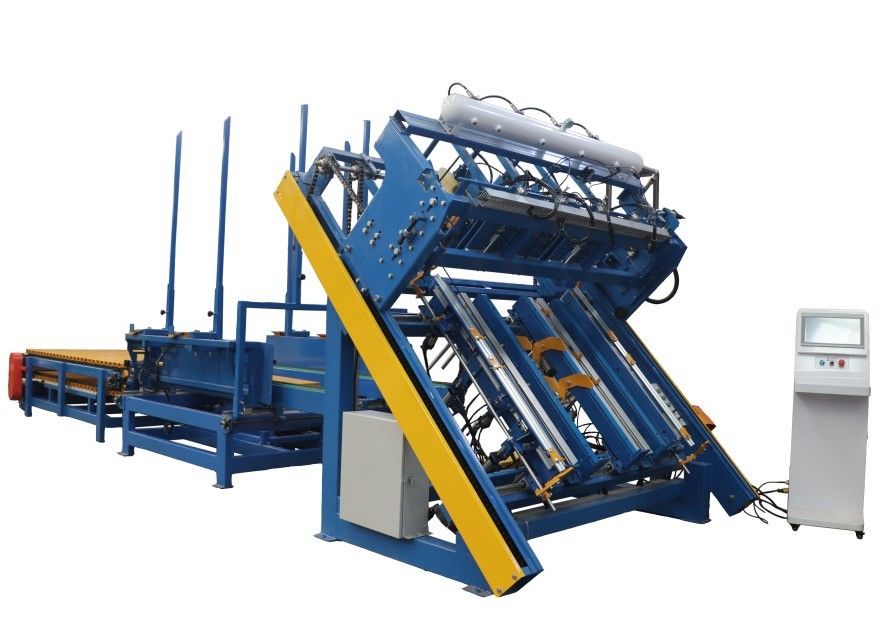

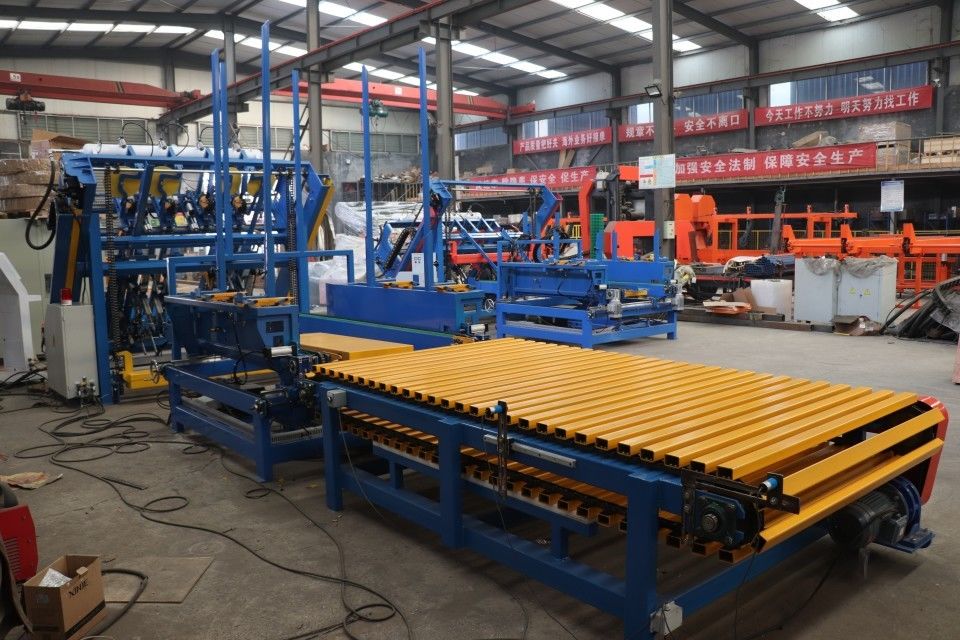

Automatic Stringer Pallet Production Line Stringer Pallet Nailing Machine
Tempat asal | PROVINSI SHANDONG, CINA |
---|---|
Nama merek | SH |
Sertifikasi | ISO9001 |
Nomor model | AWPN-1300, PT-1700, PT-3400, AWPN-1500 |
Kuantitas min Order | 1 SET Mesin pemaku Pallet |
Harga | US $19,800 - 21,500 / Set |
Kemasan rincian | pemuatan kontainer dari mesin pemaku Pallet |
Waktu pengiriman | dalam 20 hari |
Syarat-syarat pembayaran | T/T, Western Union |
Menyediakan kemampuan | 1000 set / tahun mesin pemaku Pallet |
Contact me for free samples and coupons.
Ada apa:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xnama | Mesin pemaku palet otomatis | Aplikasi | Memaku palet kayu |
---|---|---|---|
Panjang Pallet Kayu | 600-1300mm | Lebar palet kayu | 800-1300mm |
Operasi | Penyetelan otomatis layar sentuh PLC | Tekanan udara | 0,8Mpa |
Jumlah Senjata Kuku Coil | 3pcs atau 4pcs | Produktivitas produksi | Pengumpanan manual / pemakuan otomatis / pembuatan palet otomatis |
Peralatan palet | dengan itu, kerja otomatis | Jenis palet | nampan Amerika |
Kuku gulungan | Ya, aku tahu. | Layanan purna jual disediakan | Dukungan online, suku cadang gratis, komisioning dan pelatihan |
Cahaya Tinggi | Automatic Stringer Pallet Production Line,Stringer Pallet Pallet Nailing Machine |
Automatic Wood Pallet Nailer, Pallet Nailer with 4 nail guns ,wood pallet nailing machine
Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
Model | AWPN-1300 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 220V/ 2kw Servo motor |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Weight | 2000kg |
Related Products
Pallet Notcher
Model | WPN-1 | WPN-2 |
Power | 15kw | 30kw |
Material of knife | Alloy | Alloy |
Capacity | 600-800pics/h | 1800pics/h |
Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
Wood pallet width: 160mm | Wood pallet width: max 90mm | |
Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
Slot depth: <45mm | Slot depth: <45mm | |
Slot width: 200-230mm | Slot width: 200-230mm | |
Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
Machine wight | 400kg | 1000kg |
Feature | Slot smooth, size consistent | |
Apply for many kinds of slots, also can customized. |
Semi-Automatic wooden pallet nailing machine
Model | AWPN-1500 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Feeding mode | Hand pull |
Palletizing mode | Automatic |
Operational mode | Pneumatic operation |
Voltage | 380V,480V or other |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Palletizing quantity | 10P |
Weight | 2000kg |
Manual American Wood Pallet Nailing Table
Processing Pallet Length:1300mm
Model | PT-1600 | PT-3300 |
Wood pallet length | 600-1300mm | 700-1500mm |
Wood pallet width | 800-1600mm | 900-3300mm |
Operational mode | Pneumatic operation | Pneumatic operation |
Air pressure | 0.8MPA | 0.8MPA |
Production efficiency | 30-40pcs /h | 30-40pcs /h |
Number of beams | 3p (customized) | 5p (customized) |
Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
Weight | 650kg | 950kg |
Size | 2400*980*1900mm | 4000*980*1900mm |
Automatic Euro Wood Pallet Nailing Machine
