Mesin Gergaji Potong Kayu Otomatis, Mesin Gergaji Potong Kayu Otomatis Dengan Kontrol Digital
| Place of Origin | Shandong Province, China |
|---|---|
| Nama merek | SH |
| Sertifikasi | ISO9001 |
| Model Number | DZ-450,DZ-600 |
| Minimum Order Quantity | 1 SET |
| Harga | US $6,800 - 18,500 / Set |
| Packaging Details | container loading of wood chamfer machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Ada apa:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDetail produk
| Name | Automatic Wood Cut Off Saw Machine | Saw Blade diameter | 600mm*30mm |
|---|---|---|---|
| Feeding table length | 2m/ 4m/ 6m | Discharge table length | 1200mm |
| Cutting height | 10-140mm | Cutting width | 30- 300mm |
| Cutting section Thickness*width | Max.120*300mm 140*280mm | Total power | 12.5kw |
| Operation | Siemens PLC Touching screen | Weight | 1500kgs |
| Warranty | 1 Year |
Deskripsi Produk

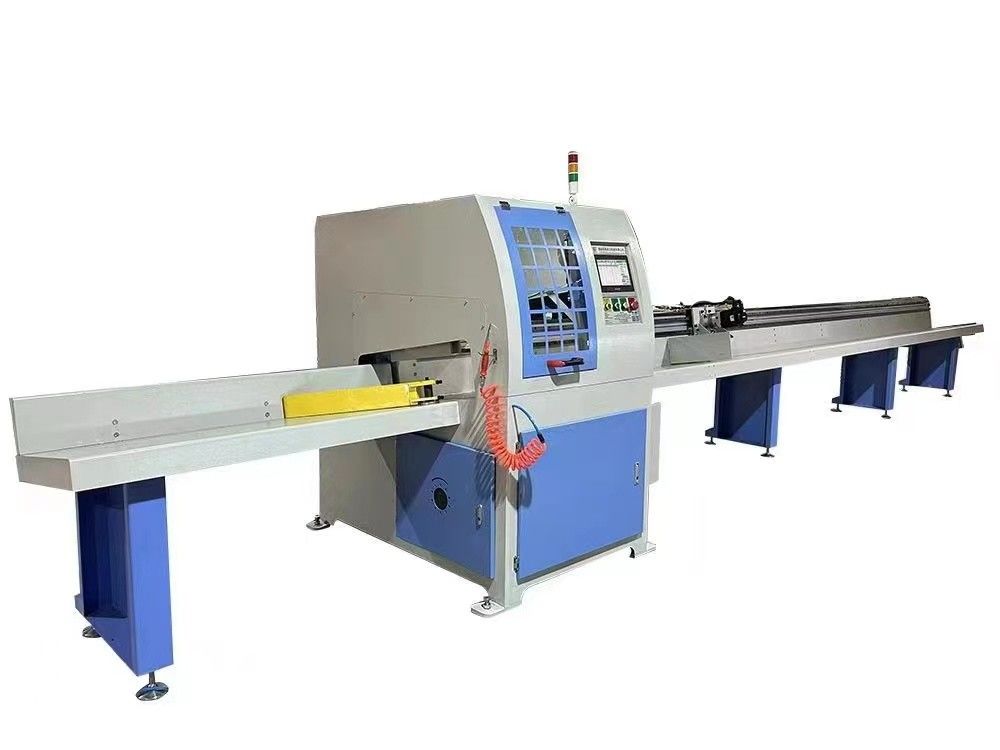

Mesin Gergaji Pemotong Kayu Otomatis
Mesin Talang Kayu
Data teknis:
| Model | EPWC-7050 |
| Sampaikan motor servo | 1kw |
| Motor hidrolik | 2.2kw |
| Motor keseluruhan | 7.2kw |
| Tegangan | 380v 50Hz 3 fase |
| Jenis pemotong | Pemotong frais 45° V, kiri dan kanan |
| Panjang kerja | 600-1500mm |
| Ketebalan kerja | 17-35mm |
| Lebar kerja | 80-150mm |
| Produktifitas | 500-700 pc/jam |
| Tekanan hidrolik | 0,4-0,5Mpa |
| Sistem pengaturan | Siemens |
| Dimensi mesin | 4450*800*1400mm |
| Dimensi pengepakan | 3220*920*1760mm |
| Berat mesin | 1040kg |

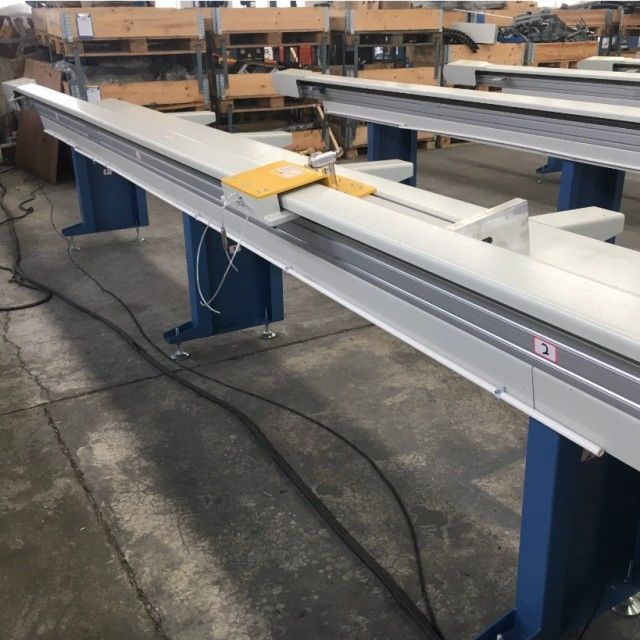

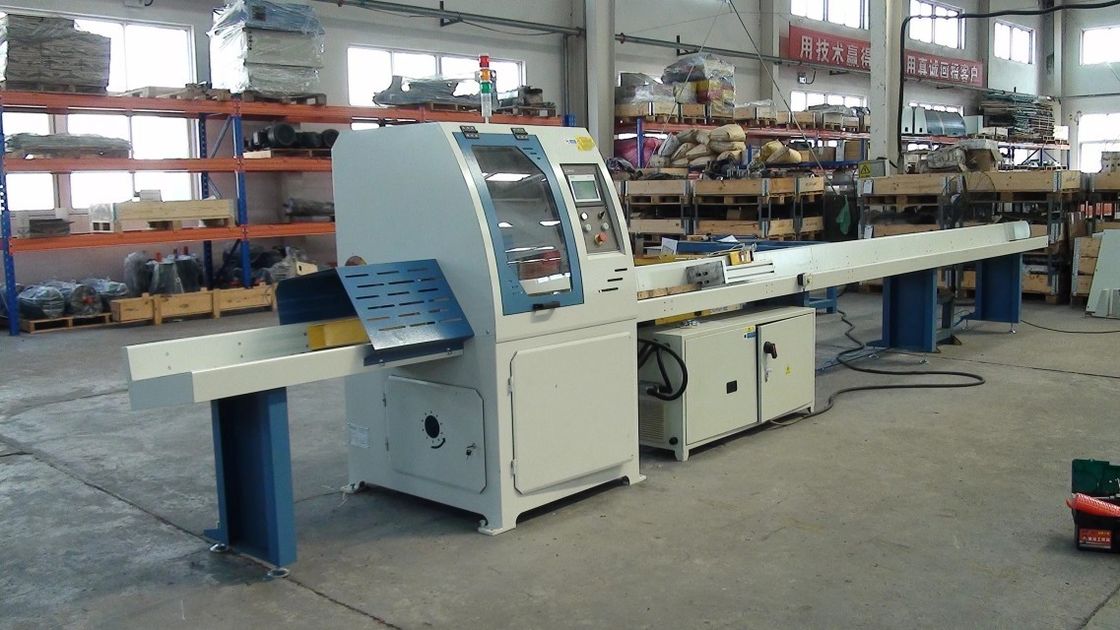

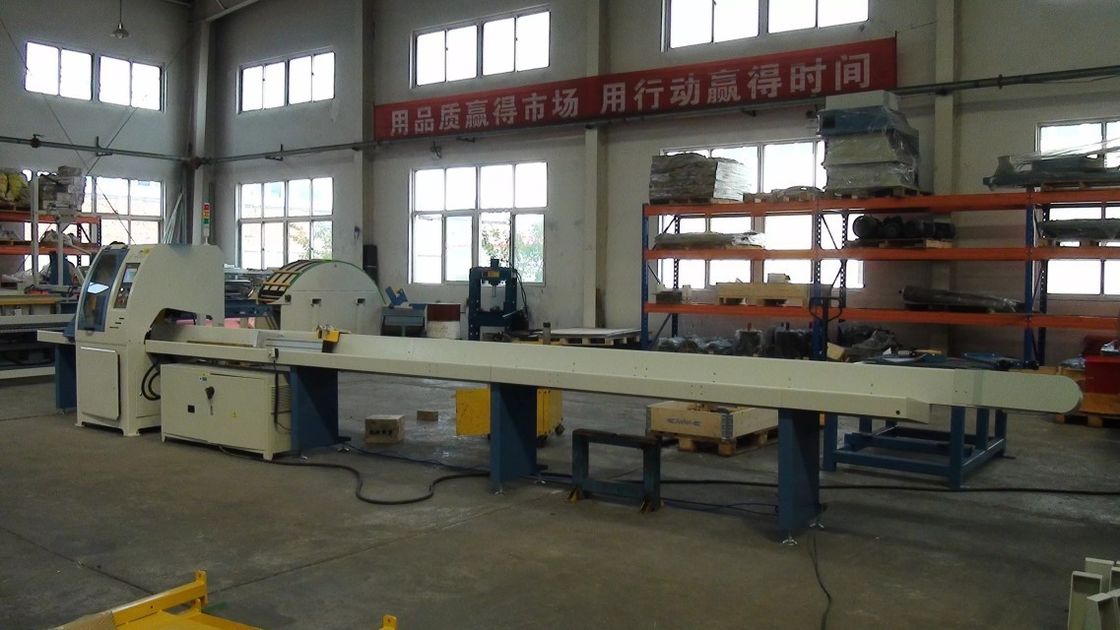

Foto:
Produk-produk terkait:
Mesin Gergaji Pemotong Pallet Foot Pier
| Model | JD-1500 |
| Memotong kayu maks.panjang | 1500mm |
| Ketebalan Pemotongan | 50-120mm |
| Lebar Pemotongan | 60-200mm |
| Ukuran dermaga kaki palet | 30-200mm |
| Diameter Gergaji | 400mm |
| Motor | 7.5kw/3fase |
| Kapasitas produksi | 1500-1800P/JAM |
| Berat | 350kg |
Mesin Pemaku Pallet untuk Palet Euro
| Model | PT-1600 |
| Panjang palet kayu | 600-1300mm |
| Lebar palet kayu | 800-1600mm |
| Modus operasional | Operasi pneumatik |
| Tekanan udara | 0,8MPA |
| Efisiensi produksi | 30-40pcs / jam |
| Jumlah balok | 3p |
| Jumlah senjata paku | 2P (CN70,CN55) |
| Berat | 650kg |
