Gergaji pita kayu horizontal / mesin gergaji pita hidrolik / mesin gergaji kayu
Penggergajian Pita Horisontal Hidrolik Otomatis
Spesifikasi teknis:
| Model | MJH1000A | MJH700A |
| Max Menggergaji Kayu Diameter | 1000mm | 700mm |
| Diameter Roda Gergaji | 700mm | 700mm |
| Ketebalan Gergajian Maks | 300mm | 300mm |
| Panjang Kayu Gergaji Standar | 4,5 meter | 4,5 meter |
| Tenaga Motor Utama | 22kw | 18,5KW |
| Tenaga motor hidrolik | 4kw | 3kw |
| Lebar Bilah Gergaji | 40mm-80mm | 40mm-80mm |
| Panjang Mesin | 6000mm | 6000mm |
| Berat | 3500kg | 3000kg |
| 型 号 | Model | MJH1300E |
| 锯割木材直径 | Max Menggergaji Kayu Diameter | 1300mm |
| 锯轮直径 | Diameter Roda Gergaji | 700mm |
| 最大锯割木材厚度 | Max Menggergaji Ketebalan Kayu | 300mm |
| 锯割木材长度(标准) | Panjang Kayu Gergaji Standar | 4000mm |
| 电机功率 | Tenaga Motor Listrik | 30kw |
| 升降电机 | Motor Listrik Atas/Bawah | 1.5kw |
| 行走电机 | Maju/mundur Motor Listrik | 2.2kw |
| 锯条宽度范围 | Lebar Bilah Gergaji | 27mm-75mm |
| 涨紧锯条 | Ketegangan Pisau | 液压 Hidrolik |
| 机床长度 | Panjang Mesin | 5800mm |
| 重量 | Berat | 2500kg |

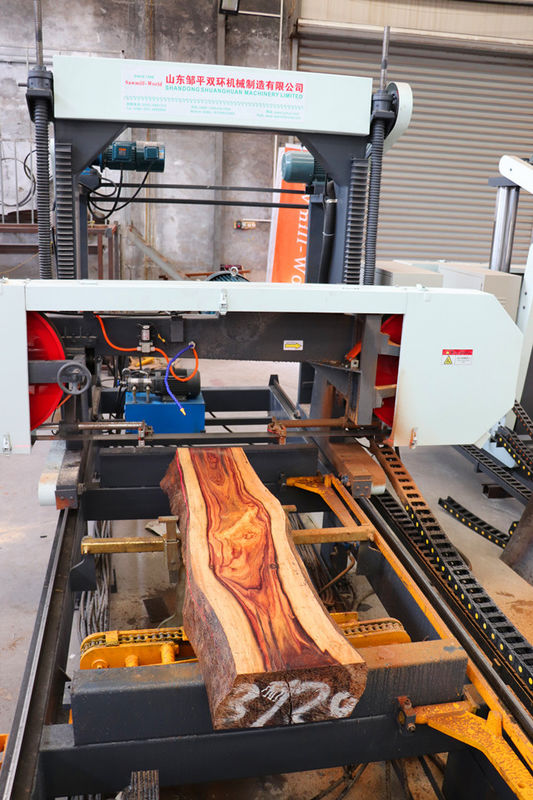

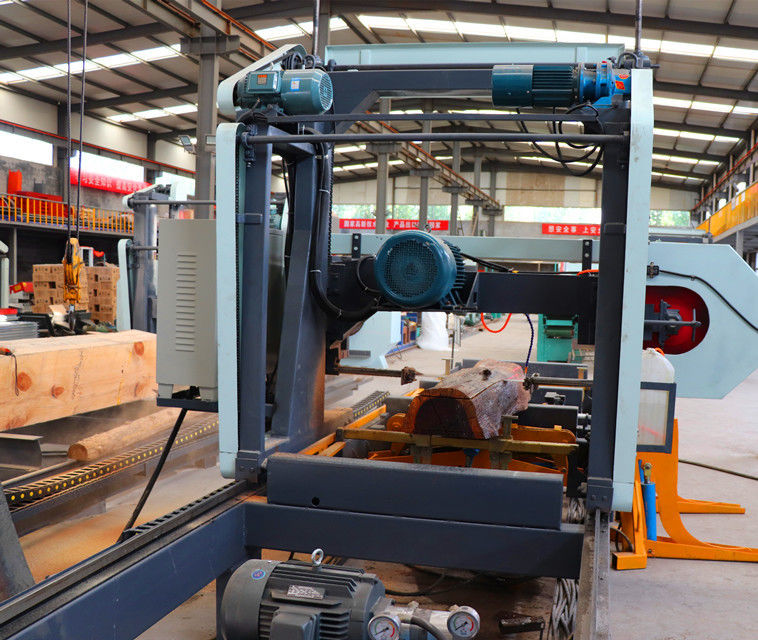

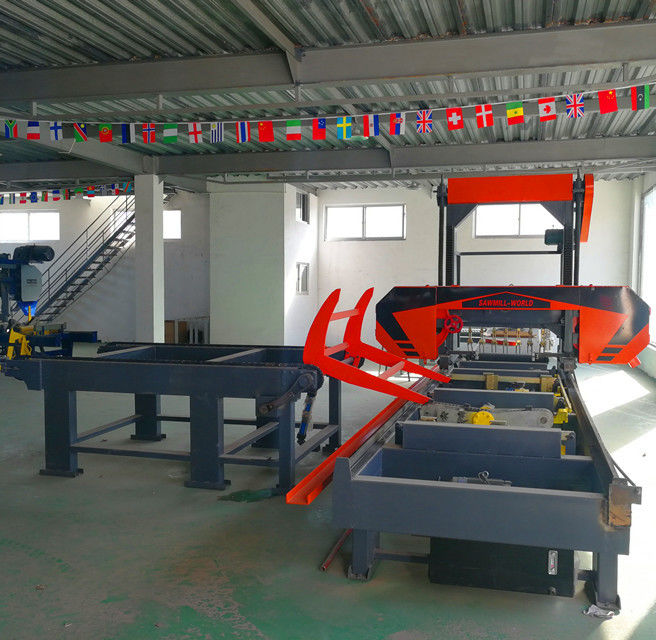

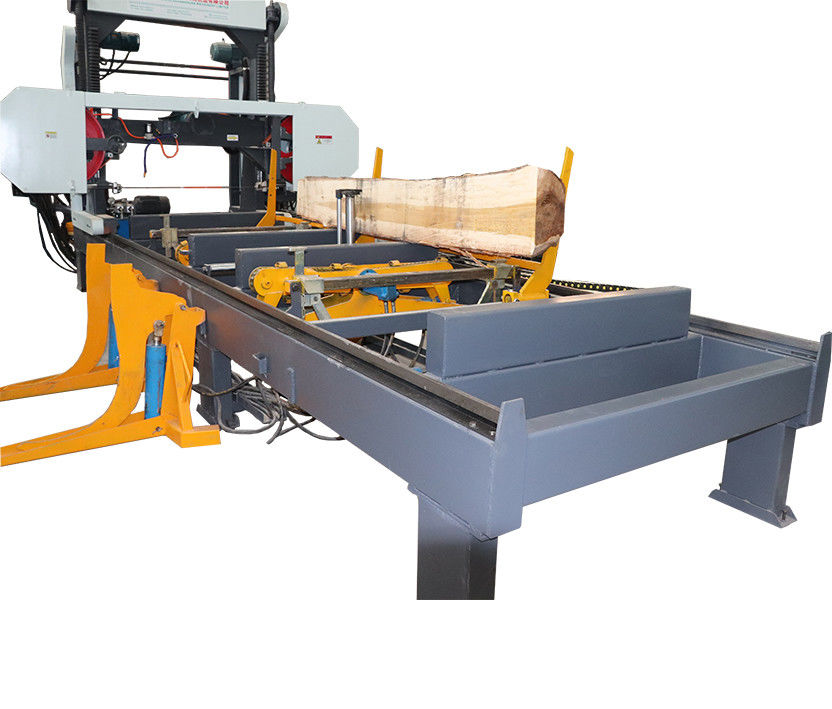

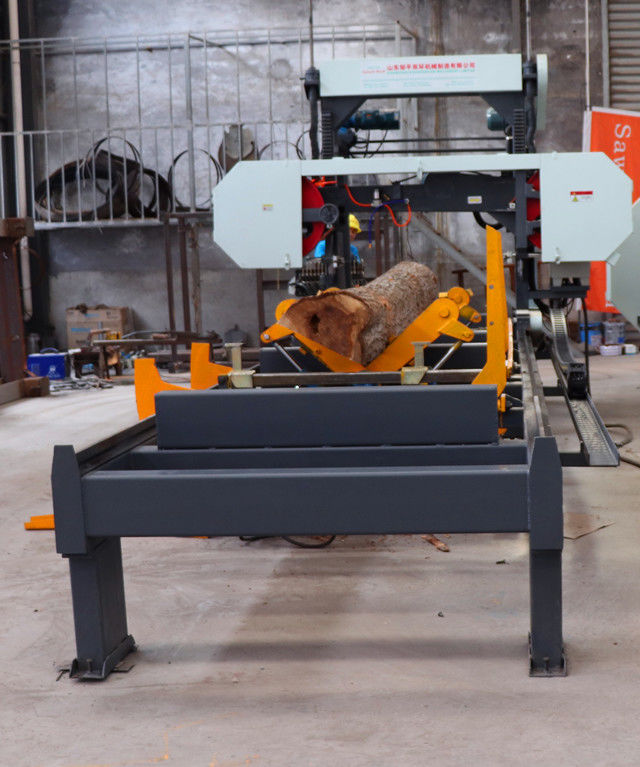

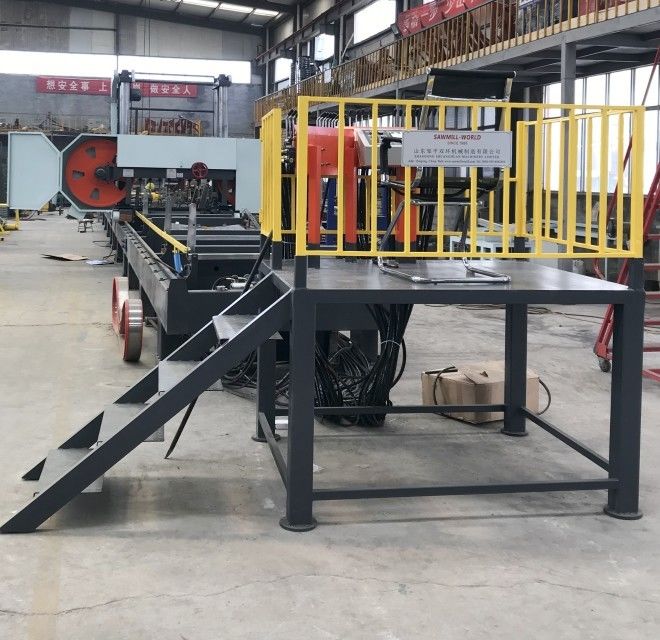

Gambar Detail
Produk-produk terkait:
Tugas berat mesin penggergajian kayu hidrolik pemotongan kayu besar
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Menggergaji Kayu Diameter
|
1200mm
|
1500mm
|
|
Diameter Roda Gergaji
|
1000mm
|
1070mm
|
|
Max Menggergaji Ketebalan Kayu
|
400mm
|
400mm
|
|
Panjang Kayu Gergaji Standar
|
4500mm
|
4500mm
|
|
Tenaga Motor Listrik
|
37kw
|
45kw
|
|
Motor Listrik Atas/Bawah
|
2.2kw
|
2.2kw
|
|
Motor Listrik Maju/Mundur
|
3kw
|
3kw
|
|
Lebar Bilah Gergaji Pita
|
125-150mm
|
125-150mm
|
|
Ketegangan bilah gergaji pita
|
Listrik
|
|
|
Panjang Mesin
|
7000mm
|
7000mm
|
|
Berat
|
7000kg
|
8500kg
|
